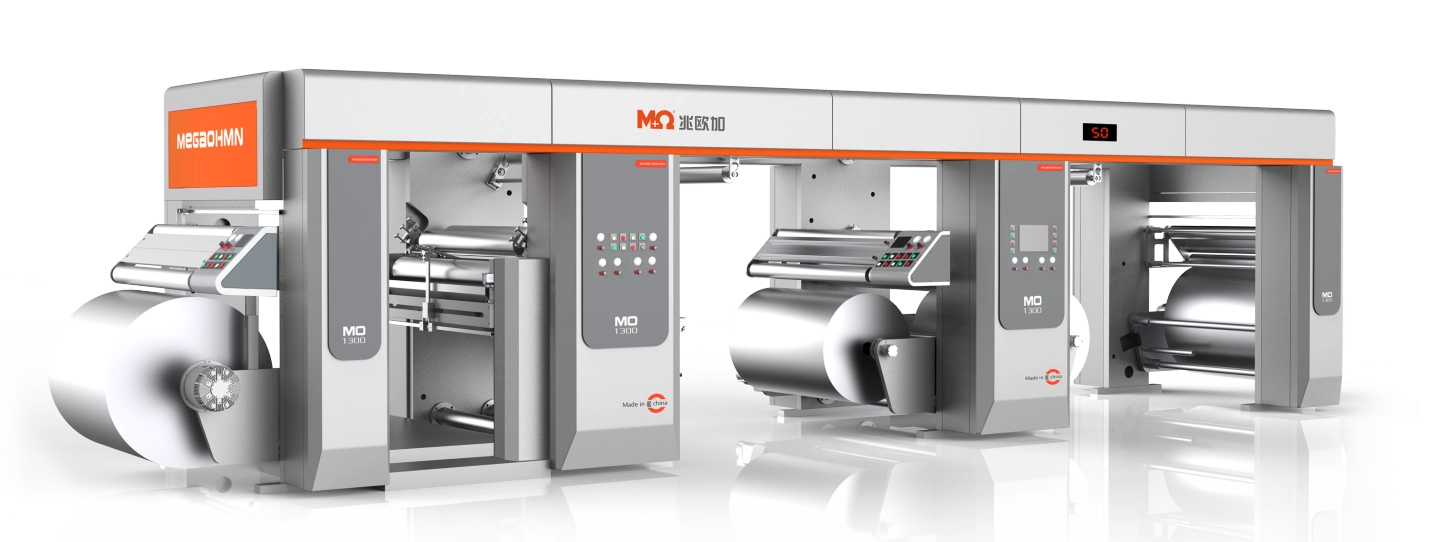

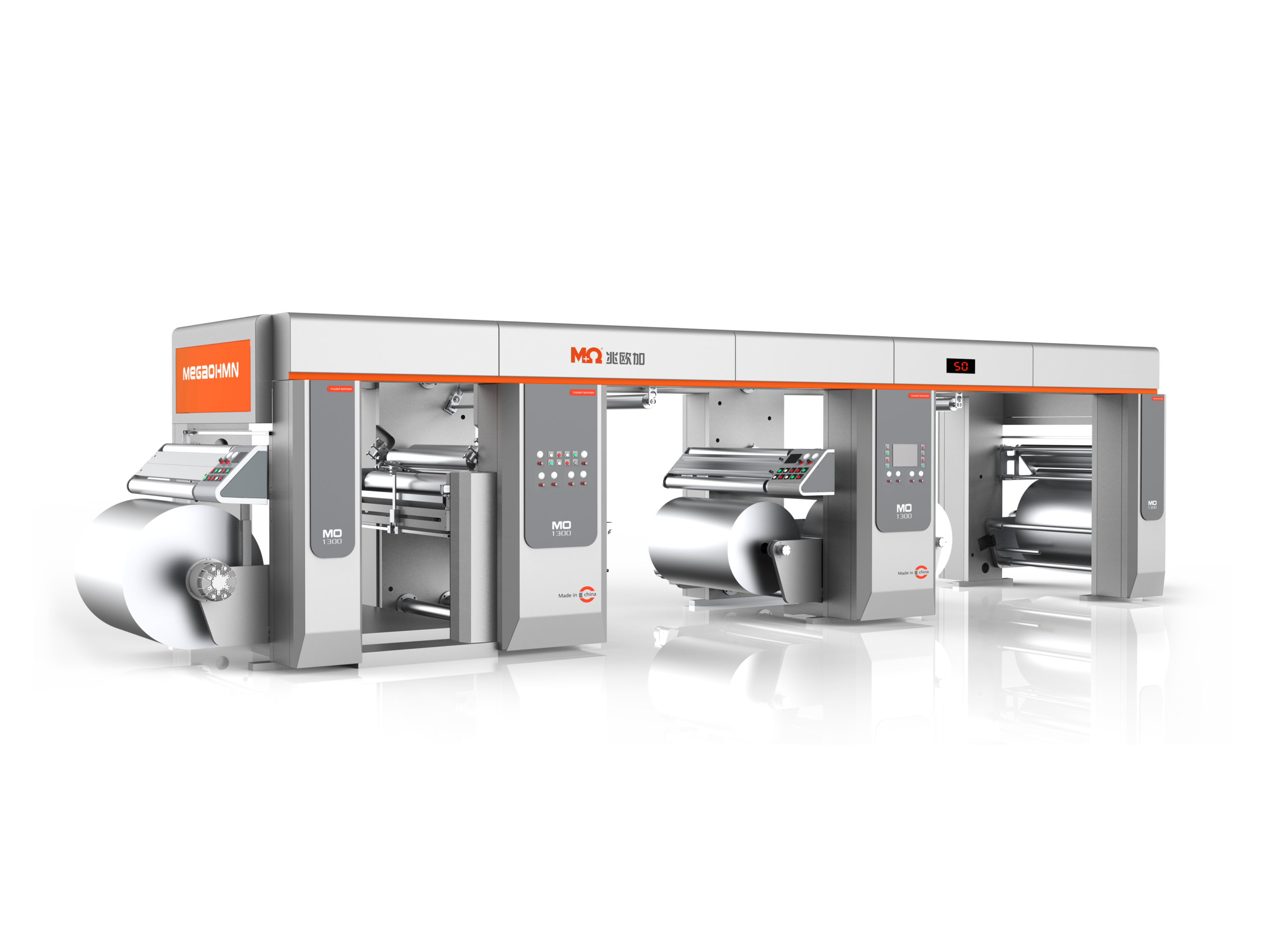

MO Insulation Material Laminating Machine

Download Technical Data Installation and dimension figure

Character：Solventless, worry-free, no oven, cost-saving

Compared with other solvent-less in the market

  • The preferred choice for manufacturing insulation materials for motors and transformers.
  • Where there is electricity, there is insulation; where there is insulation, there is MEGAOHMN
  • Simultaneous coating on both sides of the middle layer.
  • Shaftless unwinding and rewinding for easy material loading and unloading.
  • Lamination speed is 100m/min, equivalent to 5 times the efficiency of solvent-based systems.
Maximum laminate speed 120 m/m
Maximum laminate width 1350 mm
Maximum unwinding diameter 800 mm
Maximum rewinding diameter 800 mm
Material loading MechanismShaftless loading
Reel diameter 3+6 inches

SINSTAR craftsmanship spirit

function

Applicable substrates: DMD insulation paper, NHN insulation paper, etc

  • 1.Applicable Materials: DM、DMD、NH、NHN、AM、AMA、PM、PMP、NM、NMN
  • 2.Solventless glue, energy-saving, environmentally friendly
  • 3.Solvent-free safety with no fire hazards
  • 4.Lamination speed is 100 m/min
  • 5.Equivalent to 5 times the efficiency of solvent-based systems
  • 6.Equipment cost can be recovered within a year
  • 7.Spindle servo motor with dancer roller tension synchronization control system ensures more stable tension, resulting in smoother insulation materials.
