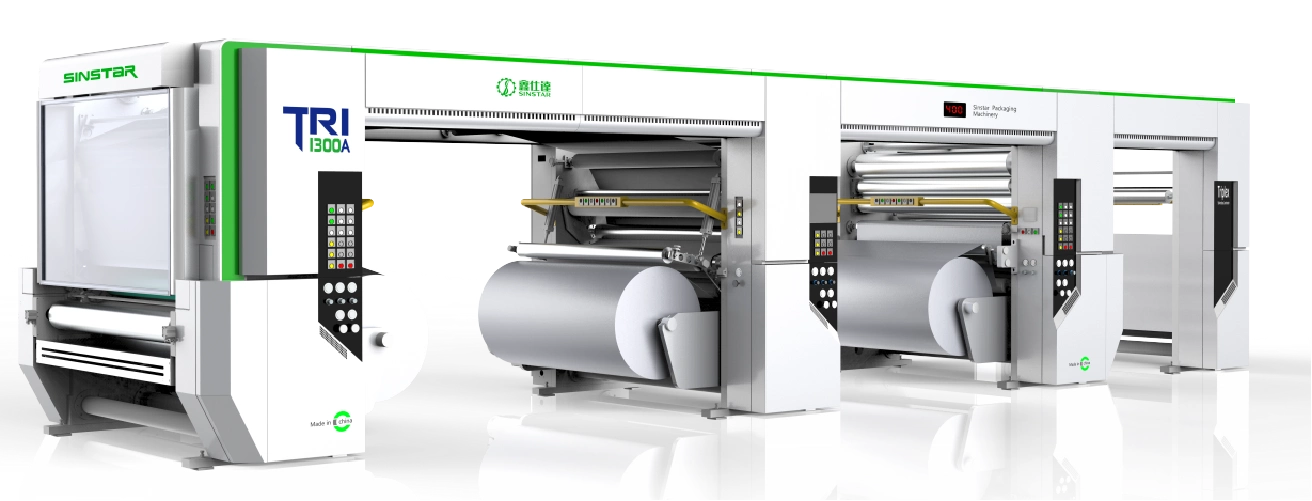

TRI triplex solventless laminating machine

Download Technical Data Installation and dimension figure

Character：Alu-foil : low loading Short routing,No back penetration

Describe

TRI Triplex solvent-free laminating machine is suitable for high-speed solvent-free lamination of different types of plastic film, metallized film, aluminum foil and paper. It is one of the most popular laminating models in the market

Compared with other solvent-less in the market

  • Resolved the impact of pinholes in 006 aluminum foil on the lamination process.
  • The Triplex system improves lamination efficiency by three times compared to the duplex system.
  • It saves 90,000 kilowatt-hours of electricity annually compared with similar equipment
  • Operates easily
Maximum laminate speed 450 m/m
Maximum laminate width 1350 mm
Maximum unwinding diameter 800 mm
Maximum rewinding diameter 800 mm
Material loading mechanismshaftless loading
Reel diameter 3+6 inches

SINSTAR craftsmanship spirit

function

Applicable substrates: plastic film, metallized film, paper, aluminum foil, etc

  • 1.Three-roller back pressure lamination mechanism for more reliable lamination quality
  • 2.Tungsten carbide coated coating steel rollers, wear resistance increased by 5 times
  • 3.One-touch input for coating weight, simple operation
  • 4.Dual motor coordinated mechanical braking, effectively prevents high-viscosity glues from affecting measurement, ensuring coating quality
  • 5.One-touch positioning for limited rollers, stable coating gap, and easier cleaning and maintenance
  • 6.One-touch completion of glue ratio, simple operation
  • 7.Unique four-level ratio protection system for a secure guarantee of lamination quality
  • 8.Spindle servo motor with swing arm tension linkage control system, ensuring more stable tension
  • 9.One-touch setting of rewinding taper. Rewinding taper uses fuzzy mathematics and adaptive taper tension control technology
