S2-1300Aâ…¡ dual-station solventless laminating machine

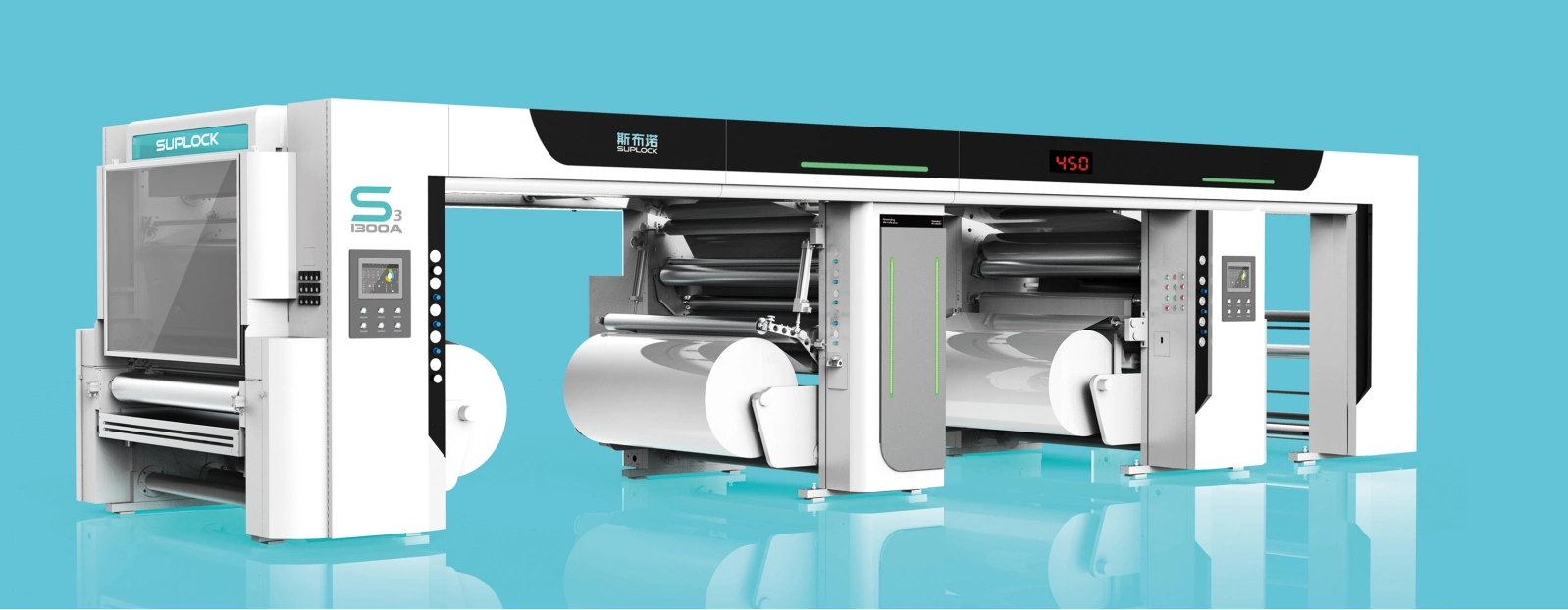

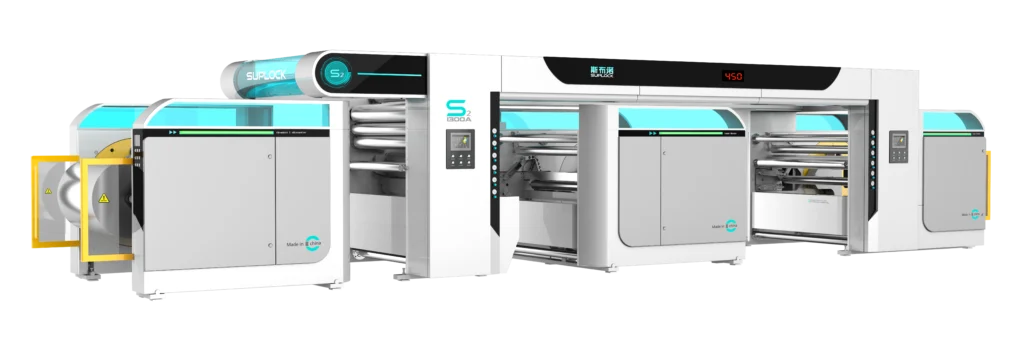

S2-1300Aâ…¡ Dual-station Solventless Laminating Machine

Three-layer co-laminating, Non-stop material replacement

The S2-1300Aâ…¡ dual-station solventless laminating machine is a highly efficient combi lamination machine designed to boost production efficiency and solve complex material challenges. This automated laminator features three-layer co-laminating capability , which thoroughly solves the pinhole problem in 006 aluminum foil and eliminates the phenomenon of moisture absorption and deformation when PA is replaced. Furthermore, the equipment adopts international renowned component brands, ensuring operational stability and reliability.

This machine achieves significant production process optimization through laminating automation. It supports non-stop material replacement , allowing for continuous coating without interruption , thus eliminating the phenomenon of uneven coating affected by shutdown and material replacement. The tension system adopts digital technology, capable of managing 5300 sets of work orders, which greatly enhances operational precision and production management convenience. It’s the ideal choice for improving your capacity and product quality.

  • Download
Configuration Information Drawing

Features of S2-1300Aâ…¡ Dual-station Solventless Laminating Machine

  • Features a three-roller back pressure laminating mechanism for reliable composite quality.
  • Tungsten-carbide coated roller surface significantly enhances hardness and provides 5x greater wear resistance.
  • Simple one-click input of the coating amount ensures uniform coating and easy operation.
  • Two cooperating motors with mechanical brakes effectively counteract the influence of high viscosity, ensuring accurate measurement and coating quality.
  • One-click limiting roller positioning ensures a stable and reliable coating gap and facilitates easy cleaning.
  • One-click control for easy and precise adjustment of the glue ratio.
  • Unique 4-ratio protection system provides safe laminating quality protection.
  • The 5-spindle servo motors with a swing arm tension linkage control system ensure stable and precise tension control.

Specification of S2-1300Aâ…¡ Dual-station Solventless Laminating Machine

Maximum laminate speed 450 m/m
Maximum laminate width 1350 mm
Maximum unwinding diameter 800 mm
Maximum rewinding diameter 800 mm
Material loading mechanismshaftless loading
Reel diameter 3+6 inches
