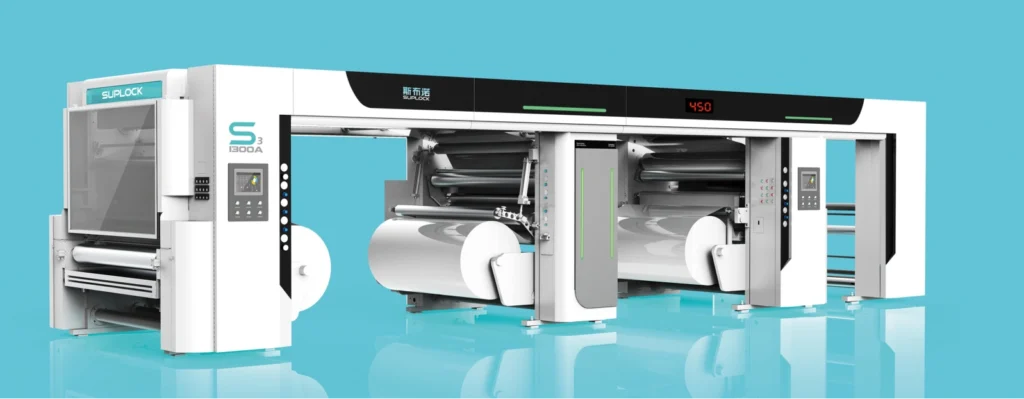

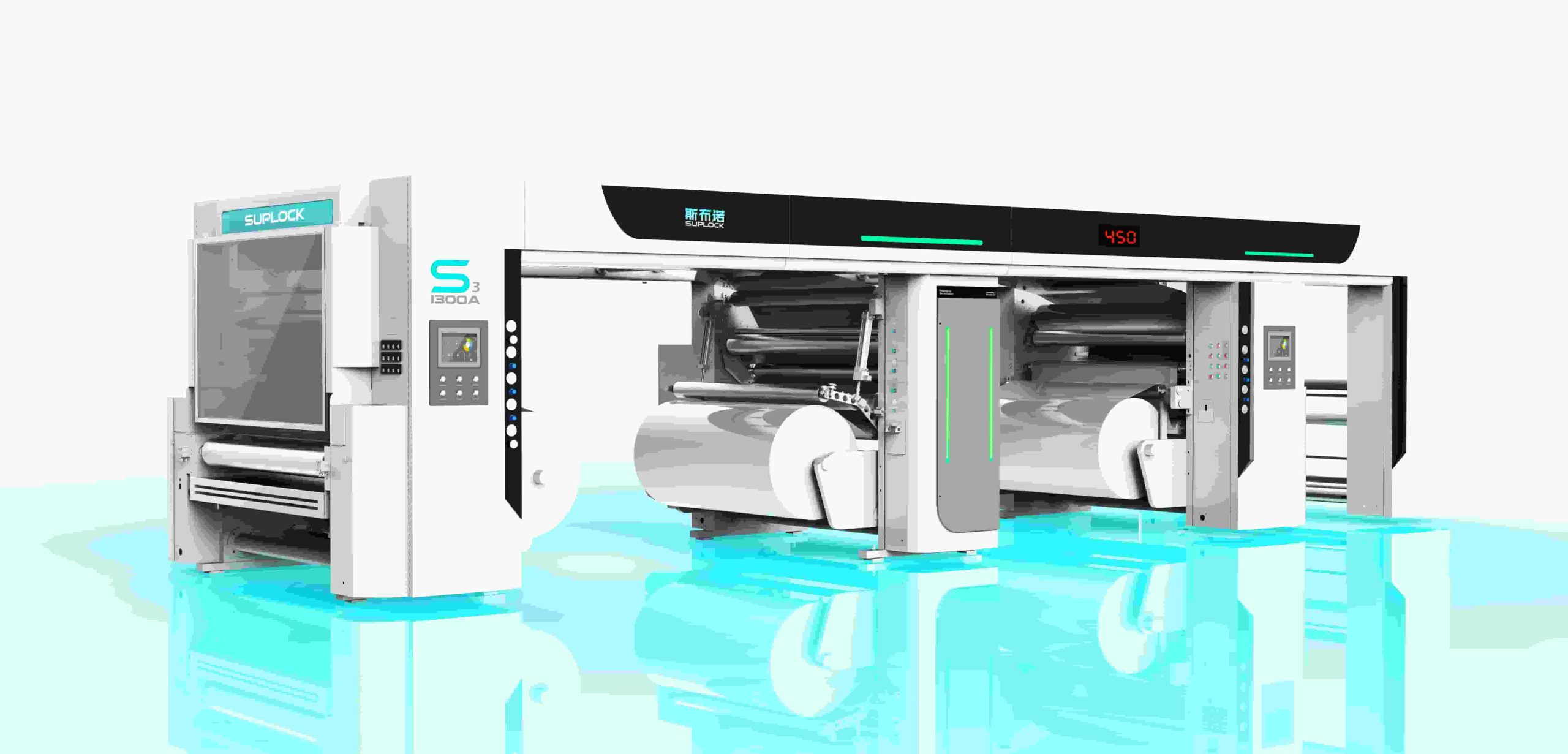

S3 triplex solventless laminating machine

Download Technical Data Installation and dimension figure

Character：Low-position aluminum foil loading, short path, no back penetration for aluminum foil

Describe

The Triplex system increases lamination efficiency by three times compared to the duplex system. It meets the multi-layer lamination process needs of medium to large-scale flexible packaging companies and is suitable for multi-layer lamination of plastic films, metallized films, aluminum foil, and paper.

Compared with other solvent-less in the market

  • Resolved the impact of pinholes in 006 aluminum foil on the lamination process.
  • The triplex system improves lamination efficiency by three times compared to the duplex system
  • Tension control adopted digital technology, with 300 sets of order management capabilities
  • Uses internationally renowned brand components
Maximum laminate speed 450 m/m
Maximum laminate width 1350 mm
Maximum unwinding diameter 800 mm
Maximum rewinding diameter 800 mm
Material loading mechanismshaftless loading
Reel diameter 3+6 inches

SINSTAR craftsmanship spirit

function

Applicable substrates: plastic film, metallized film, paper, aluminum foil, etc

  • 1.Three-roller back pressure lamination mechanism for more reliable lamination quality
  • 2.Tungsten carbide coated coating steel rollers, wear resistance increased by 5 times
  • 3.One-touch input for coating weight, simple operation
  • 4.Dual motor coordinated mechanical braking, effectively prevents high-viscosity glues from affecting measurement, ensuring coating quality
  • 5.One-touch positioning for limited rollers, stable coating gap, and easier cleaning and maintenance
  • 6.One-touch completion of glue ratio, simple operation
  • 7.Unique four-level ratio protection system for a secure guarantee of lamination quality
  • 8.Spindle servo motor with swing arm tension linkage control system, ensuring more stable tension
  • 9.One-touch setting of rewinding taper. Rewinding taper uses fuzzy mathematics and adaptive taper tension control technology
